Laguna Woodworking Tools

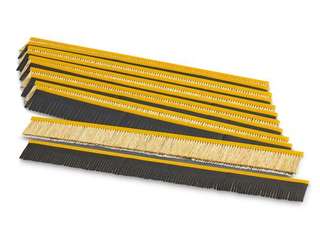

13" FLATTER STRIP SET, 24 CT. - 60 GRIT

13" FLATTER STRIP SET, 24 CT. - 120 GRIT+A50

13" FLATTER STRIP SET, 24 CT. - 80 GRIT

13" FLATTER STRIP SET, 24 CT. - 120 GRIT

13" FLATTER STRIP SET, 24 CT. - 100 GRIT

13" FLATTER STRIP SET, 24 CT. - 150 GRIT

13" FLATTER STRIP SET, 24 CT. - 180 GRIT

13" FLATTER STRIP SET, 24 CT. - 220 GRIT

13" FLATTER STRIP SET, 24 CT. - 320 GRIT

13" FLATTER STRIP SET, 24 CT. - 280 GRIT

13" DOVETAIL HUB W/ GANGS

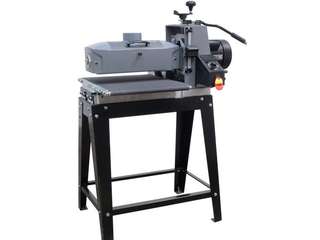

16-32 DRUM SANDER OPEN STAND

• The 16-32 Drum Sander (#71632) is the newest member of SuperMax Tools drum sander family which was designed with new features to improve productivity.
• Patented Quick Adjustment Lever: reduces set-up time. Built-in DRO (digital readout): maintain material thicknesses to increase accuracy and quality. Turbo Vented dust port: increases airflow to your dust collector by 15%.
• The rear placement of the Gear Motor: improve conveyor belt tracking. These new features complement the same great features SuperMax Tools have provided for years.
• Patented Fast Lever: allows quick adjustments for wide and narrow stock. INTELLISAND Technology: prevents gouging, damaging, or burning material.

Exceptional Laguna SuperMax Features.

• We’ve addressed issues common with other drum sanders by engineering features that are exclusive to our 16-32 machines.
• No other drum sander on the market has these features!
• Patented “Quick Lever Adjustment” which allows height adjustments from 0″-3″ with one pull of a lever versus 48 revolutions of a hand wheel greatly reducing set-up time and increases productivity. Includes build-in Digital Read Out which helps maintain consistent thicknesses to increase accuracy and quality.
• A newly designed Turbo Vented Dust Port increases CFM air-flow to dust collectors by 15%.
• Simple alignment feature – just one nut adjusts the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy.
• Indexed alignment setting – the fast lever is an indexed alignment setting for narrow and wide stock.
• When sanding stock wider than 16″, the index lever will properly adjust the conveyor for flawless wide sanding.
• Drum will never go “out of alignment” – the drum carriage is bolted to the base, preventing any movement or alignment issues.
• INTELLISAND Technology.
• CSA Certified.
• Drum Speed 1740 RPM.
• Maximum Sanding Width 32″.
• Minimum Sanding Length 2-1/4″.
• Maximum Sanding Thickness 3″.
• Minimum Sanding Thickness 1/32″.
• Drum 5″ x 16″ extruded aluminum.
• Dust hood Turbo Vented – 1×4″, vacuum port (min. 600 CFM recommended).
• Conveyor Speed 0-10 FPM.
• Drive Motor 1-1/2 HP.
• Power Requirements 110 V, 15 Amp, 20 AMP Service.
• Shipping Weight 158 lbs (1 box including stand).
• Dimensions (Footprint).W: 34″ | D: 22″ | H: 48″ (without casters).

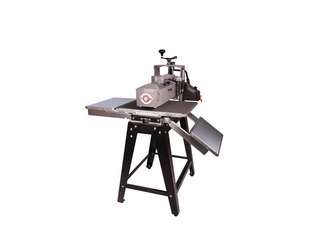

IN/OUT TABLES FOLDING 16-32

• SuperMax infeed and outfeed tables help accommodate larger pieces of wood for sanding.

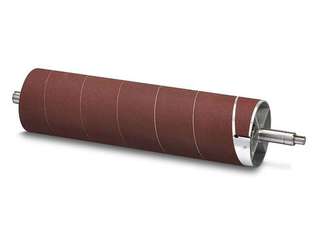

19" DRUM (FOR COMBO MACHINE)

• Sanding Drum accessory for the 19-38" Combo Drum/Brush Sander from SuperMax Tools.

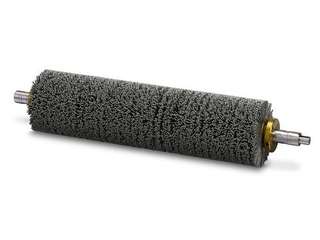

WIRE BRUSH HEAD (19-38 COMBO)

• SuperMax 19" Wire Brush Head is for use with the SuperMax 19-38 Combination Sander.
• The Wire Brush Head will pull out the softer grain between grain lines, creating a wavy, weathered texture that looks great on antiqued or distressed pieces.

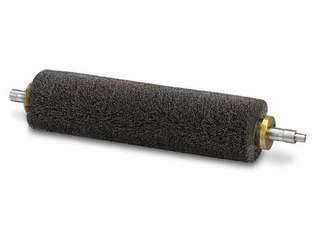

NYLON BRUSH HEAD (19-38 COMBO)

SuperMax 19" Nylon Brush Head is for use with the SuperMax 19-38 Combination Sander.

Features:

• 80-grit silicon- carbide impregnated nylon brush.
• Creates open grain for stain.
• White wood sand, primer sand, scuff sand, bed-gloss, and distress to create wood-grain texture.
• Great for cleaning.

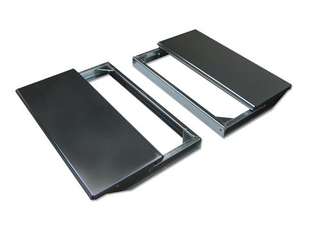

IN/OUT TABLES FOLDING 19-38 OPEN STAND ONLY

• Additional infeed and outfeed support for the 19-38 Drum Sander for reduced tipping on long material—tables fold away for compact storage.
• These infeed/outfeed tables provide added material support for the SuperMax 19-38 Drum Sander (#44188, sold separately).
• With added support on either end of your sander, you'll experience less tipping of long stock and less risk of gouging and sander snipe.
• The tables fold away to save space in the shop and to make it easy to move the sander from place to place.
• Works with open stands only.

Features:

• Improves support of both short and long stock as it enters and exits the sander.
• Easy to assemble, attach, and adjust.
• Heavy-duty steel construction.
• Weight: 27.9500 Tech Spec:
• Material: Steel.
• Platform Width: NA.
• Platform Depth: NA.
• Depth to Conveyor: NA.
• Outlet No

IN/OUT TABLES FOLDING CLOSED STAND ONLY

• These metal Infeed/Outfeed Tables provide additional support for longer workpieces.
• Easy to attach with a new folding feature so the tables can stay in place while the machine can be moved around.
• Sander and Closed Stand are not included.

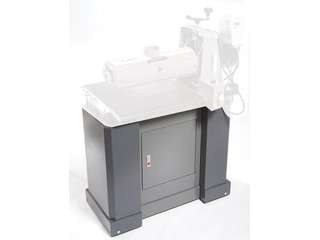

CLOSED STAND BUILT-IN CASTERS FITS 19|38, 19|38 COMBO & 25|50

• Heavy duty enclosed metal stand with storage shelf and latching door.
• Perfect for abrasive and accessory storage in a dust resistant cabinet.
• Mobile base included to make moving around the shop easy.
• Two-tone grey colors compliment the 19-38 perfectly.

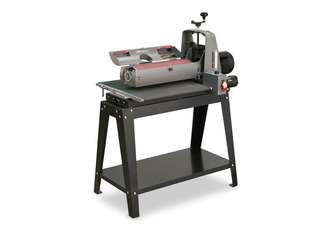

19-38 DRUM SANDER WITH OPEN STAND

• Perfect for the small shop or woodworking enthusiast, the SuperMax 19-38 Drum Sander reduces the tedium of hand sanding, speeds up the sanding process, and produces more consistent results!

Machine Overview

• The 19-38 Drum Sander comes standard on the Open Stand.
• The drum is pre-wrapped with 80 grit sandpaper.
• Additional accessories and sandpaper are available for purchase.
• Award-Winning: The 19-38 Drum Sander was awarded 5 out of 5 stars by WOOD magazine, and received the Editor’s Pick award from American Woodworker magazine.

Exceptional SuperMax Features.

• We’ve addressed issues common with other drum sanders by adding five features that are exclusive to our 19-38 machines.
• No other drum sander on the market has these features!
• Simple alignment feature Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy.
• Indexed alignment setting Has an indexed alignment setting for narrow and wide stock.
• When sanding stock wider than 19”, the index lever will properly adjust the conveyor for flawless wide sanding.
• Easy height adjustments A thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding.
• No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments.
• Extra-wide conveyor to properly support stock over 19” wide.
• The conveyor table is 22” wide to add support to the workpiece.
• Drum will never go “out of alignment” The drum carriage is bolted to the base, preventing any movement or alignment issues.

Additional Features:

• INTELLISAND™ Technology: Automatically adjusts conveyor speed based on load.
• Prevents gouging, damaging, or burning stock. Provides consistent finish even with varying grain pattern and density.
• Greatly increases abrasive planing and dimensioning speed.
• Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander.
• Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner.
• Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap.
• The easiest access to the abrasive fastening system of any drum sander! Extra-wide space to access fasteners to eliminate the need for special tools. The self-cooling drum prevents overheating and extends abrasive life. Tension rollers are adjustable in height and hold down pressure, eliminating snipe.
• Excellent dust extraction as dust cover is formed to shape of the drum. Metal, not plastic, is formed to maximize airflow and dust extraction.
• Heavy-duty cast iron construction for strength, rigidity, and reduced vibration.

Sanding Capacity:

• Maximum Width (in): 38 (two passes)
• Minimum Length (in): 2-1/4
• Maximum Thickness (in): 4
• Minimum Thickness (in): 1/32
• Dimensions (in): 27D x 46W x 52H (on stand).
• Drum (in): 5 x 19 extruded aluminum.
• Drum Speed: 1740 RPM.
• Dust Hood: 1- 4″ vacuum port, min.
• 600 CFM recommended.
• Conveyor Motor: 43 in.-lb. torque, direct drive D.C. motor, ranged variable 0-10 FPM.
• Drive Motor (TEFC): 1-3/4 HP.
• Power Requirements: 110 V, 15 amp.
• Shipping Weight (lbs): 286 (3 boxes incl. stand)
