Freud and Diablo Products

Pallet Ripping Blade #LCL7M10068

• Industry first four-strobes versus current market 2-strobe design for less heat and binding on the blade body. Especially when cutting wet material, four-strobes allows the blade to cut more efficiently, reducing the amount of stress on the blade.
• Flat Tooth Grind technology for more wear resistance and increased cutting life
• Increased Depth of the Tooth for additional impact resistance and more resharpenings
• Exclusive Tico Hi-Density Carbide is designed and manufactured by Freud specifically for each cutting application to maximize cutting life and material finish in a variety of materials
• Perma-shield non-stick coating prevents build up on the blade surface and keeps the blade running cooler and cleaner, for better cut quality and longer blade life
• 10" Blade Diameter, 2.938" Arbor, 96 Teeth, FLAT Grind, .157" Kerf (K), 25° Hook Angle, 2.5" Plate (P) blade

Pallet Ripping Blade #LCL7M10069

• Industry first four-strobes versus current market 2-strobe design for less heat and binding on the blade body. Especially when cutting wet material, four-strobes allows the blade to cut more efficiently, reducing the amount of stress on the blade.
• Flat Tooth Grind technology for more wear resistance and increased cutting life
• Increased Depth of the Tooth for additional impact resistance and more resharpenings
• Exclusive Tico Hi-Density Carbide is designed and manufactured by Freud specifically for each cutting application to maximize cutting life and material finish in a variety of materials
• Perma-shield non-stick coating prevents build up on the blade surface and keeps the blade running cooler and cleaner, for better cut quality and longer blade life
• 12" Blade Diameter, 2.938" Arbor, 28 Teeth, FLAT Grind, .126" Kerf (K), 25° Hook Angle, 2.2" Plate (P) blade

Pallet Ripping Blade #LCL7M10070

• Flat Tooth Grind technology for more wear resistance and increased cutting life
• Increased Depth of the Tooth for additional impact resistance and more resharpenings
• Exclusive Tico Hi-Density Carbide is designed and manufactured by Freud specifically for each cutting application to maximize cutting life and material finish in a variety of materials
• Perma-shield non-stick coating prevents build up on the blade surface and keeps the blade running cooler and cleaner, for better cut quality and longer blade life
• 12" Blade Diameter, 2.938" Arbor, 12 Teeth, FLAT Grind, .157" Kerf (K), 25° Hook Angle, 2.5" Plate (P) blade

• Freud Specialty Cutting
• Heavy Duty Multi-Purpose Blade
• 10" X 5/8" X 60T TCG
• Ideal For: Stacked Chipboard and Man-made Materials.
• Crosscuts (1/2" to 2-3/4") & Rips (3/4" to 3/8" ).
• This multi-purpose blade will cut stacks of man-made wood products as well as hardwood and softwood up to 2-3/4" thick.
• The blade’s deep gullets and TCG rip and crosscut through hardwoods and softwoods with ease.
• Although the ideal working range is 1/2" to 2-3/4" thick, thinner or thicker materials may be cut, resulting in some loss of surface finish.

Industrial Thick-Stock Laminate Saw Blade #LU92M010

• 10-inch, 60TPI, MTCG, 5/8 inch arbor
• Ultimate laminate blade for corian, melamine, laminates
• Each tooth has modified triple chip grind
• Zips through solid surface or single & double laminates
• Chip-free finish

Freud Blade for Plastic #LU94M010

• 10" X 5/8" X 80T TCG
• Ideal For: Plexiglass and Plastics. Depth of cut (1/4" to 1-5/8").
• This industrial blade cuts acrylics, polycarbonates and other plastics, leaving a smooth finish without melting.
• By combining micrograin carbide tips with a specially modified triple chip grind these blades will give a clean smooth cut.
• These blades produce less heat keeping the cut edge crisp.

This industrial blade cuts acrylics, polycarbonates and other plastics, leaving a smooth finish without melting. By combining micrograin carbide tips with a specially modified triple chip grind these blades will give a clean smooth cut. These blades produce less heat keeping the cut edge crisp.

Solid Surface Blade #LU95R010

• 10" X 5/8" X 72T TCG
• Ideal For: Solid surface materials such as DuPont^® Corian^®, Wilsonart Gibralter^® and SSV Fountainhead^®. Depth of cut (1/4" to 1-5/8").
• With this ultimate solid surface blade, there is no need for stabilizers.
• This blade features teeth with a specially designed triple chip grind for leaving swirl-free cuts in solid surface materials such as DuPont^® Corian^®, Wilsonart Gibralter^® and SSV Fountainhead^®.
• The laser-cut anti-vibration slots reduce the sideways movement of the cutting edge against the solid surface material, dramatically extending cutting life.
• With this ultimate solid surface blade, there is no need for stabilizers.

Thin Kerf Double Sided Laminate/Melamine #LU96R010

• 10" X 5/8" X 80T TCG
• Ideal For: Double-sided laminates, melamine & veneered plywood. Depth of cut (1/4" min to 1-5/8" max).
• The LU96R is a thin kerf blade that is designed to give long life and excellent finish on the top and bottom of laminates, melamine & veneered plywood.
• The laser-cut anti-vibration design yields the plate acoustically dead.
• This reduces the sideways movement of the cutting edge to prevent chipping in manmade materials such as laminates. This dramatically extends cutting life and finish. No scoring blades needed with this blade!

Double Sided Laminate/Melamine Blade #LU97R010

• 10" X 5/8" X 80T TCG
• Ideal For: Excellent finish on the top and bottom of laminates, melamine & veneered plywood. Depth of cut (1/4" min to 1-5/8" max).
• Designed to give long life and excellent finish on the top and bottom of laminates, melamine & veneered plywood.
• The laser-cut anti-vibration design yields the plate acoustically dead.
• This reduces the sideways movement of the cutting edge to prevent chipping in manmade materials such as laminates.
• This dramatically extends cutting life and finish. No scoring blades needed with this blade!

Superior 7-Inch 56 Tooth TCG Laminate Cutting Saw #LU98R007

• Freud LU98R007 Superior 7-Inch 56 Tooth TCG laminate and wood cutting saw blade with 5/8" arbor and PermaShield coating
• Laser cut blade bodies and expansion slots
• Kickback reducing design
• Perma-SHIELD coating
• Covered by Freud's limited lifetime warranty

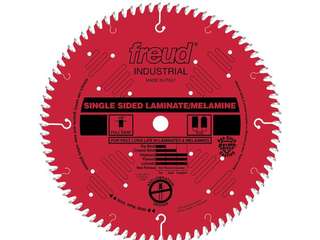

Single Sided Laminate/Melamine Blade #LU98R010

• 10" X 5/8" X 80T TCG
• Ideal For: Single-Sided Laminates, Chip Board And Other Man-made Materials. Depth of cut (1/2" min to 2-3/4" max).
• This fast-cutting blade is ideal for a perfect finish on one side of laminates and melamines.
• The Perma-SHIELD^™ coating makes these blades resistant to friction and heat build-up.
• Coated blades pull 1/3 less on the saw, which translates into 33% more cutting power.
• The 10° hook angle and a triple chip grind provide fast cuts and long cutting life.

Box Joint Cutter Set #SBOX8

• 8" Box Joint Set
• Ideal For: Making box joint construction easy
• To create a perfectly square, flat-bottom box joints, on a table saw without using a dado set or saw blade.
• Set includes 2 blades, instructions for making box joints and building a box joint jig.

Professional Dado Set #SD208S

• 8" Stack Dado
• Ideal For: Ideal for under-powered saws
• Creates clean edges, square shoulders, make flat bottom grooves and virtually splinter-free cuts.
• Set includes 2 blades, 3 chippers, spacers, shim set and carrying case.

Super Dado Sets #SD508

• 8" Super Dado
• Ideal For: For cutting slots, grooves, dadoes, and rabbets in softwood or hardwood.
• To create clean edges, square shoulders, make flat bottom grooves and virtually splinter-free cuts.
• Set includes 2 blades, 6 chippers, shim set and carrying case.
• Adjusts in 1/32" increments.
