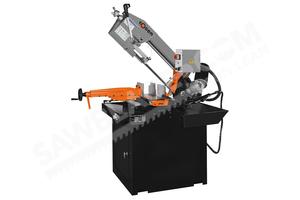

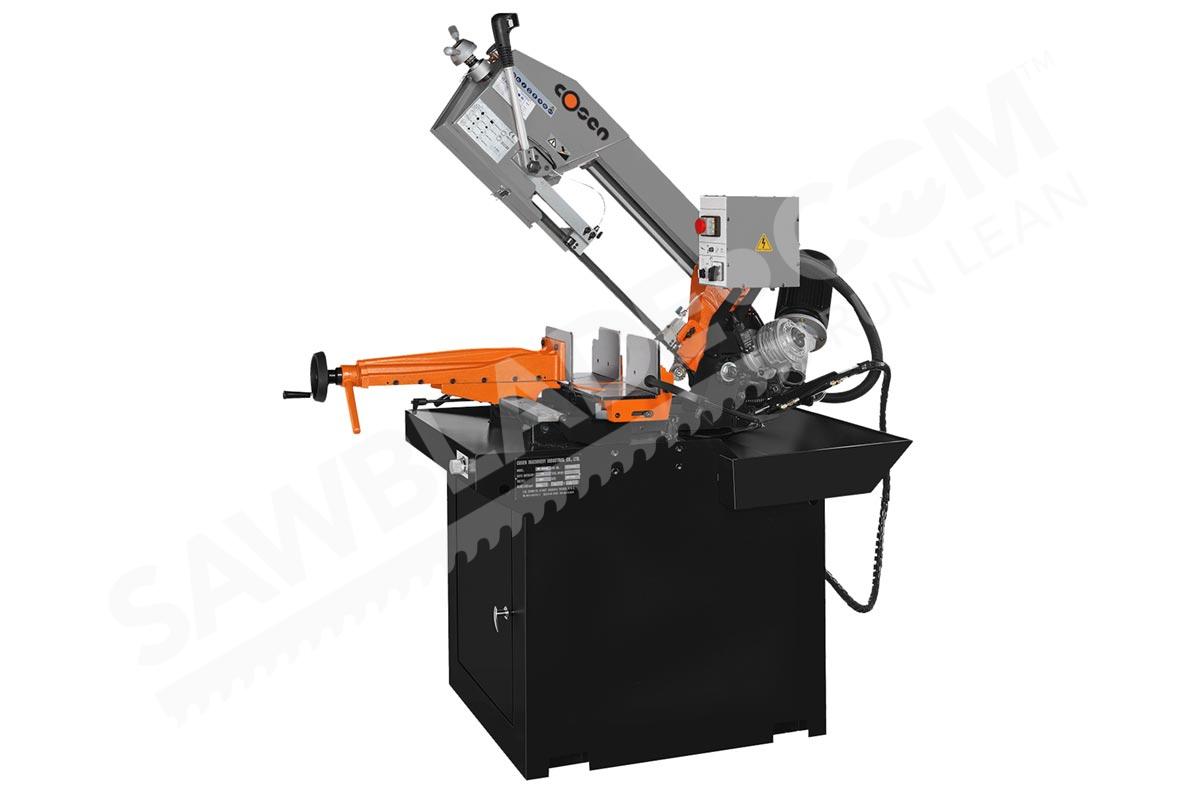

Cosen MH-300DM Manual Double Swivel Head Mitering Horizontal Band Saw

Cosen MH-300DM

Standard Features

  • Blade Guide: Carbide
  • Blade Length: 116.7 in
  • Blade Speed: 122-231 FPM
  • Coolant Pump: Standard
  • Cut Method: Horizontal
  • Feed System: Manual
  • Laser Alignment: No
  • Miter Cut: Dual +/-60°
  • Motor: 1.5 HP
  • Swivel Method: Head
  • Table Height: 0
  • Voltage: 220V
  • Ship Wt: 760 lbs.

Cutting Capacity

Cutting Angle Stock Shape Stock Size
-45° Bar Stock 9.4"
Rectangular Stock 7.5" x 7.5"
Square Stock 7.5" x 7.5"
-60° Bar Stock 6.29"
Bar Stock 10.2"
Rectangular Stock 9" x 11.6"
Square Stock 9" x 9"
45° Bar Stock 9.4"
Rectangular Stock 8.3" x 8.9"
Square Stock 8.3" x 8.3"
60° Rectangular Stock 5.1" x 6.3"
Square Stock 5.1" x 5.1"
Mouseover to zoom
Cosen MH-300DMImage unavailableImage unavailableImage unavailableImage unavailable
Downloads
Spec Sheet
$6,095.00

Residential    Commercial
No    Yes
This item requires a fork-lift for delivery.

Cosen MH-300DM Description and Features

Application

  • It is an ideal tool for the small to medium machine shop, maintenance shop, metal fabricating shop, school, and limited run production work.
  • The rigid guide arms are mounted off of the cast saw frame for more solid and supportive surface. This rigid design owes to use of superior cast-iron which greatly reduces vibration and achieves better cutting result.

Features

  • The Cosen Manual Series Band Saw comes equipped with manual vise and adjustable hydraulic down feed( except MH-270M/MH-210M).
  • Hydraulic cylinder plus precision ground hinge support guide the rugged saw frame through the entire cutting cycle.
  • Swivel frame design utilizing heavy-duty cast iron swivel center features straight and miter cuts from 90 to 60 degrees (forward) to 45 degrees (reverse) with quick setting and precise positioning. It enables smooth turning of the saw frame for each angle viable via the easy-to-read mitering scale.
  • Its solid construction ensures many years of reliability and accuracy at a high level of performance.

Benefits

  • Large rugged base provides support for the heavy castings, and it comes with built-in coolant system for all-in-one convenience.
  • Quick clamping/releasing vise, equipped with short range sliding device over a reliable lead screw system with anti-slip hand wheel.
  • The control panel is clearly arranged and located on in an ergonomic position next to the saw head.
