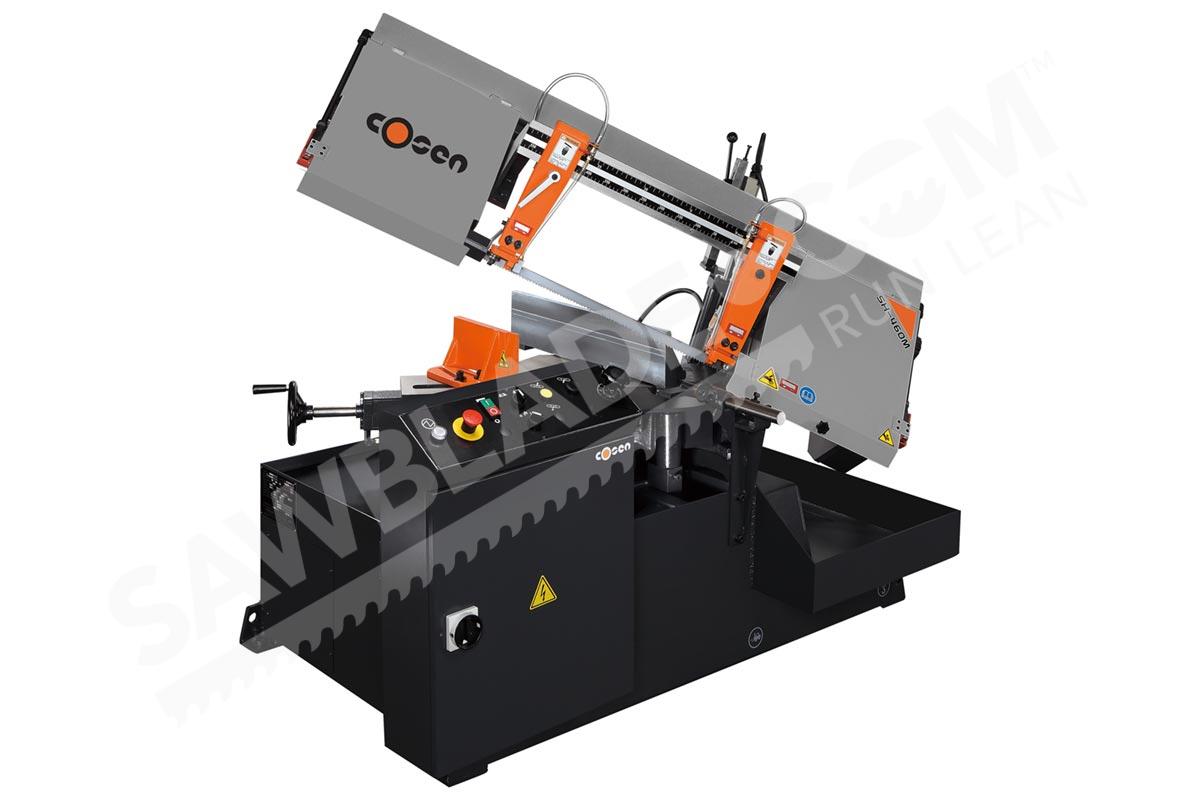

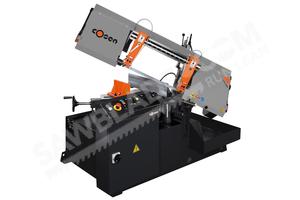

Cosen SH-460M Semi-Automatic Swivel Head Mitering Horizontal Band Saw

Cosen SH-460M

Standard Features

  • Blade Guide: Carbide
  • Blade Length: 138 in
  • Blade Speed: 95-150-213-321 FPM
  • Cut Method: Horizontal
  • Motor: 2HP
  • Table Height: 25.4 in
  • Ship Wt: 1530 lbs.

Cutting Capacity

Cutting Angle Stock Shape Stock Size
-45° Bar Stock 9"
Rectangular Stock 9" x 9"
-60° Bar Stock 4.3"
Rectangular Stock 9" x 4.3"
Bar Stock 10"
Rectangular Stock 9" x 18.1"
Mouseover to zoom
Cosen SH-460MImage unavailableImage unavailableImage unavailableImage unavailable
Downloads
Spec Sheet
Item on backorder
$9,495.00

Temporarily Out Of Stock.
Residential    Commercial
No    Yes
This item requires a fork-lift for delivery.

Cosen SH-460M Description and Features

Application

  • Cosen’s SH-460M has a heavy-duty swivel frame and bed miter design with a capacity of 250mm (10”). Key features included in this robust machine allow for the use in mass production environments as well as tool room applications. Specifically designed bed and swivel allow users to easily and accurately set angles.

Features

  • Key features included in this robust machine allow for the use in mass production environments
    as well as tool room applications.
  • Hydraulic cylinder plus precision ground hinge support.
  • Heavy-duty cast iron swivel center features straight cutting ang miter cuts from 90 degrees to 30
  • Adjustable flood coolant system.
  • Carbide blade guides and bearing provided additional blade support.
  • Blade cleaning chip brush.

Benefits

  • Rigid cast-iron guide arms.
  • Cast-iron vise.
  • Adjustable downfeed control.
  • Saw head automatically raises after each cut.
  • Specifically designed bed and swivel allow users to easily and accurately set angles.
