Dual Column, Semi Automatic, Heavy Duty Band Saw

Trajan 360A

Standard Features

  • Blade Guide: Carbide
  • Blade Length: 192 x 1 1/4"
  • Blade Speed: 65-265
  • Coolant Pump: Standard
  • Cut Method: Horizontal
  • Feed System: Manual
  • Laser Alignment: No
  • Miter Cut: No
  • Motor: 5HP
  • Swivel Method: N/A
  • Table Height: 29 1/4"
  • Voltage: 440V
  • Ship Wt: 2491 lbs.

Cutting Capacity

Cutting Angle Stock Shape Stock Size
Bar Stock 14"
Rectangular Stock 14" X 22"
Square Stock 14"
Mouseover to zoom
Trajan 360 Dual Column, Semi Automatic Band SawTrajan 360 Dual Column, Band Saw ControlsTrajan 360 Dual Column, Band Saw Hydraulic ViseTrajan 360 Dual Column, Band Saw Heavy Cast Vise BedTrajan 360 Dual Column, Band SawTrajan 360 Dual Column, Band Saw Carbide Blade Guides
Spec Sheet
Item on backorder

Temporarily Out Of Stock.
Residential    Commercial
No    Yes
This item requires a fork-lift for delivery.
This item requires 2 additional days for Make Ready Service prior to being shipped.

Trajan 360A Description and Features

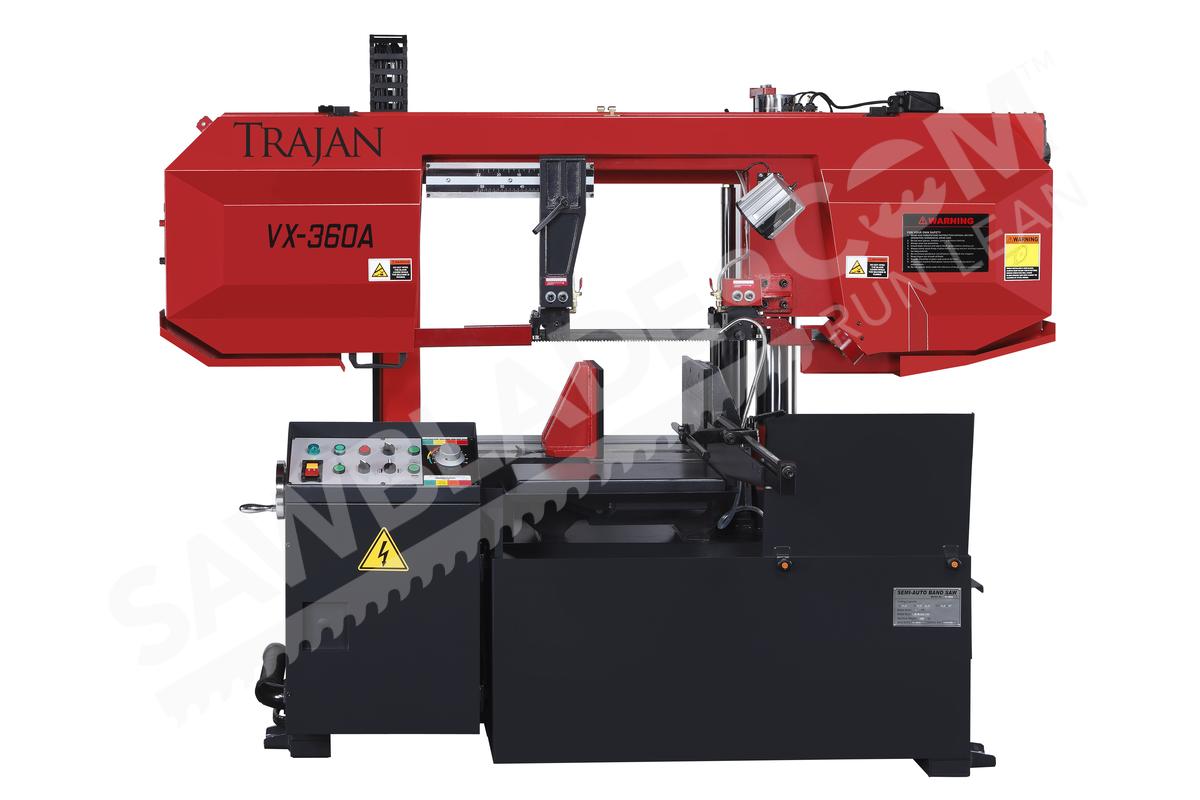

Trajan 360 Dual Column, Semi Automatic Band Saw - Heavy Duty Band Saw

If you need a heavy-duty, high-performing saw that boasts both speed and accuracy, the Trajan 360A is right up your alley. It’s a dual column, semi automatic cutting machine that packs a lot of power and operational efficiency. Designed with operator needs in mind, the Trajan 360A is packed with convenient features. Not only is it intended to make cutting faster and more precise, the Trajan 360A also helps to protect the band saw blade it uses.

Precise Control
Beginning with the most essential of precautions, the Trajan 360A has a work light. This small, but extremely useful accessory illuminates essential parts of the saw so the operator can see clearly.

The Trajan 360A also has a digital blade speed read out. With this system monitoring the blade’s exact rate, the operator can always tell exactly how fast the saw is working. With speeds between 82 and 259 feet per min, the Trajan 360A can handle a wide variety of materials and applications.

Protects the Band Saw Blade
With it’s sturdy structure, the Trajan 360A is engineered to reduce vibration during cuts. But it has several additional features that help protect its band saw blade. The chip brush, driven by the blade wheel, sweeps chips away from the cutting surface, helping to preserve the saw blade’s integrity. The Trajan 360A also comes standard with a handy chip collecting drawer, which stores the metal chips until clean up.

Many components of the Trajan 360A band saw blade contribute to it’s outstanding performance and cutting ability. Beyond mechanical power, the saw is engineered for weight and stability to help contribute to the accuracy of cuts and extend the life of its band saw blade.

Dual Column, Semi Automatic Band Saw – Heavy Duty Band Saw

  • Hydraulic vise
  • Variable blade speed
  • Chip brush driven by blade wheel
  • Blade Speed: 82~259fpm
  • Chip collecting drawer
  • Hydraulic blade tension
  • Digital blade speed read out
  • Work light
