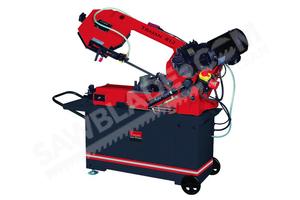

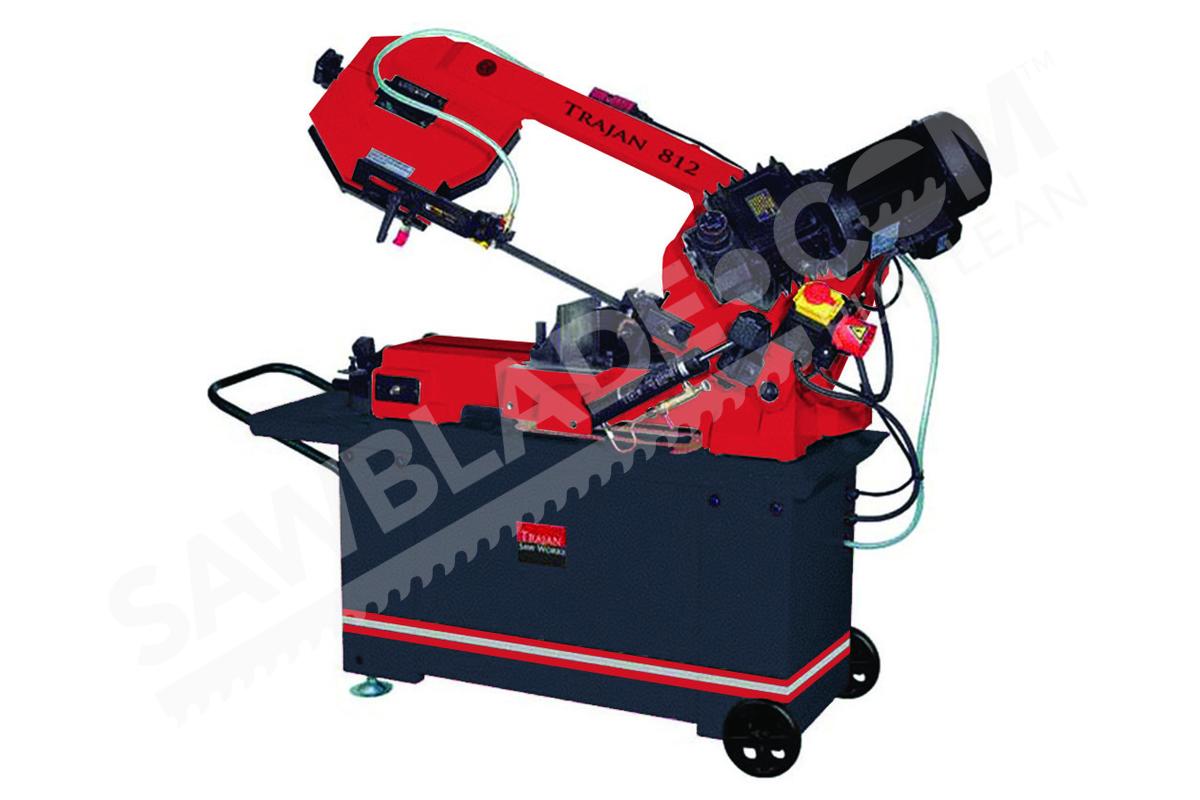

8 x 12 Utility, Geared Drive, Metal Cutting Band Saw

Trajan 812G

Standard Features

  • Blade Guide: Carbide
  • Blade Length: 93 x 3/4
  • Blade Speed: 60HZ 135-197-256
  • Coolant Pump: Standard
  • Cut Method: Horizontal
  • Feed System: Manual
  • Laser Alignment: No
  • Miter Cut: No
  • Motor: 1HP
  • Swivel Method: Vise
  • Table Height: 25.25
  • Voltage: 110V
  • Ship Wt: 465 lbs.

Cutting Capacity

Cutting Angle Stock Shape Stock Size
Bar Stock 7 7/8"
Rectangular Stock 7" X 12"
Square Stock 7 7/8" X 7 7/8"
45° Bar Stock 5"
Rectangular Stock 4 5/8" X 4 7/8"
Square Stock 4 5/8" X 4 5/8"
Mouseover to zoom
Trajan 812G, 8 x 12 Geared Drive, Metal Cutting Band SawTrajan 812G 8 x 12 Metal Cutting Band Saw Safety SwitchTrajan 812G 8 x 12 Metal Cutting Band Saw Hydraulic CylinderTrajan 812G 8 x 12 Metal Cutting Band Saw Gear BoxTrajan 812G 8 x 12 Metal Cutting Band Saw Vise BedTrajan 812G 8 x 12 Metal Cutting Band Saw Blade Brush
Item on backorder

Temporarily Out Of Stock.
Residential    Commercial
No    Yes
This item requires a fork-lift for delivery.
This item requires 2 additional days for Make Ready Service prior to being shipped.

Trajan 812G Description and Features

Step up your workshop with the Trajan 812

The Trajan 812 is a heavy duty manual miter pivot saw that can cut up to a 45 degree angle. It’s an easy to use saw that can handle the tougher materials and parts that haven’t been pre-cut. Above all, the 812 is very efficient. In fact, it “Uses half the power of competitors’ saws,” making it less expensive in the log run.

Trajan 812 Features

The Trajan 812 has a few components engineered to help you get the perfect cut. Carbide blade guides– instead of bearings – mean this saw can handle heavy-duty metals, including: • Carbon steel 41-40, • High alloy steels, • And, when paired with a carbide-tipped saw blade, materials that are 70-72 Rockwell hardness.

The Trajan 812 is equipped with a gear-driven three speed transmission that runs from 135 to 256 revolutions per minute (RPM). The transmission makes the 812 extremely convenient. “Users can change the speed while the saw is running,” it makes changing speed as simple as turning a knob. The Trajan 812 also has a built in lubricant system that allows the operator to wet cut. The lubricant systems also removes chips from the cutting surface, which can help extend blade life.

Value of the 812

The Trajan 812 band saw is a user friendly, heavy duty band saw. Even though it requires more maintenance than some other saws, its efficiency may end up saving you more money in the long run. It has great blade life because of its coolant system, and the gear transmission allowing you to save on the cost per cut.

The Trajan 812 Band Saw might just be the band saw that is perfect for your shop. If you have any questions, or would like to purchase a Trajan 812 Band Saw.

Portable, Utility, 8 x 12 Geared Drive, Metal Cutting Band Saw

Choose the Trajan 812 when you need a saw that provides excellent performance in a variety of production environments. Trajan engineered this saw to meet a variety of needs and accommodate a range of applications. The Trajan 812 also protects band saw blade life while catering to operator convenience and ensuring precise cuts.

Improved Blade Life
Replacing band saw blades in the middle of job is a tedious hassle. That’s why we designed the Trajan 812 band saw to actually protect blade life. The bearing carbide blade guides on the 812 enhance stability and reduce vibration, which lessens the damage that band saw blades sustain as they cut. The saw itself has a casting structure that contributes significantly to the strength of the cutting machine, further enhancing stability.

Prioritizes Operator Convenience
This saw features a coolant system that enables operators to take on wet cutting jobs. To make cleanup after such cuts quick, Trajan designed the Trajan 812 with a coolant pan. It collects the coolant and chips as they flow away from the cutting surface.The Trajan 812 cutting machine makes it easy for operators to get the precise cut they need. It features fully adjustable hydraulic downfeed controls and a gear drive system that enables operators to change speeds quickly.

Portable Utility Band Saw – 8" Geared Drive Metal Cutting Band Saw

  • Casting structure assures mechanical strength
  • Fully adjustable hydraulic downfeed controls the rate of descent
  • Full blade cover provides more safety
  • Gear drive system provides speed changing when saw blade is in unload running
  • Cutting angle from 0 degree to 45 degree
  • Bearing carbide guide enhances cutting stability and extends the blade life
  • Stand jointed with coolant pan for collecting chips and coolant
  • Coolant system for wet cutting
  • With standard blade, chip brush and length stop set
  • Wheel kit for convenient moving to various work stations or job location
