Laguna Woodworking Tools

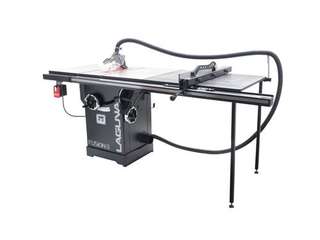

FUSION F3 52"

• More than good looks: The new Laguna Fusion line was developed for demanding woodworkers.
• Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.
• All models are equipped with the precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws.
• Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 3 is the big brother to Fusion 2. F3 52" upgraded to 52" Rip Capacity.
• cast iron trunnion
• upgraded handles & Miter Gauge
• outfield table equipped with double miter slots
• built with an extra heavy-duty cabinet, 36" steel fence.
• The onboard storage of all accessories.
• The Fusion F3 features professional cabinet saws built with no compromises.
• 2 New Features Now Standard On F2 & F3 Fusions
• DRO For The Tilt Angle Of Blade
• Double Window With Hairline For Hi/Low Fence
• Horsepower: 3HP
• Phase: Single-Phase
• Amps: 15A (220V)
• Speed: 3450 RPM
• Type: TEFC Capacitor-Start Induction
• Power Transfer: Poly-V Belt Drive
• Horsepower: 3HP
• Phase: Single-Phase
• Amps: 15A (220V)
• Speed: 3450 RPM
• Type: TEFC Capacitor-Start Induction
• Power Transfer: Poly-V Belt Drive
• Bearings: Sealed & Permanently Lubricated
• Maximum Blade Diameter: 10 in. (254 mm)
• Max Rip Right of Blade w/Included Fence & Rails: 52 in. (1320.8 mm)
• Power Requirement: 220V, Single-Phase, 60 Hz
• Prewired Voltage: 220V
• Fence Type: Camlock T-Shape w/European Hi-Lo Face
• Table: Precision-Ground Cast Iron
• Wings: Precision-Ground Cast Iron
• Cabinet: 14 Ga. Steel
• Trunnions: Cast Iron
• Dust Port Size: 4 in. (101.6 mm)
• Blade Guard Dust Port Size: 1.5 in. (38.1 mm)
• Weight, Gross: 533.58 lbs. (242 Kg)
• Weight, Net: 405 lbs. (184 Kg)
• Overall Width (side-to-side): 84.94 in. (2157.47 mm)
• Overall Depth (front-to-back): 56.1 in. (1425 mm)
• Overall Height: 42.91 in. (1090 mm)
• Power Requirement: 220V, Single-Phase, 60 Hz
• Horsepower: 3HP
• 52" Rip Capacity
• Industrial 14 Gauge (2mm) Cabinet
• Accessory Tables (Outfeed & Rip)
• Industrial Fence Rail
• Industrial Fusion Fence
• Premium Electrical & Hardware Components
• Premium Miter Gauge
• Cast Iron Fusion Trunnions
• Cabinet Mounted Arbor
• Cast Iron Table & Wings
• European Hi-Lo Fence
• Premium Zero Clearance Throat Plate
• Fusion Hi-Lo Dust Collection
• Magnetic Contactor Switch
• Quick-Release Blade Guard and Spreader
• Riving Knife Included
• Push Stick included
• Miter Gauge Included
• Blade Changing Tool Included
• Integrated Tool Storage
• Included 10 x 60T Carbide-Tipped Blade
• Premium Arbor and Motor Bearings
• Shipping Dimensions:
• Carton Number: 1
• Carton Type: Wood Crate
• Content: Tablesaw
• Weight, Gross: 482 lbs. (219 Kg)
• Length: 51.18 in. (1300 mm)
• Width: 29.92 in. (760 mm)
• Height: 42.71 in. (1085 mm)
• Must Ship Upright: YES

Shipping Dimensions:

• Carton Number: 1
• Carton Type: Wood Crate
• Content: Tablesaw
• Weight, Gross: 482 lbs. (219 Kg)
• Length: 51.18 in. (1300 mm)
• Width: 29.92 in. (760 mm)
• Height: 42.71 in. (1085 mm)
• Must Ship Upright: YES
• Carton Number: 2
• Carton Type: Wood Crate
• Content: 52" Fence Rails
• Weight: 51.58 lbs. (23.4 Kg)
• Length: 69.88 in. (1775 mm)
• Width: 4.13 in. (105 mm)
• Height: 3.93 in. (100 mm)
• Must Ship Upright: YES

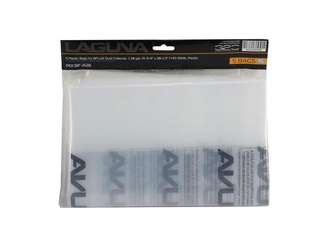

B|FLUX:I BAGS, 5 PACK

• 28 gal. 5/pack

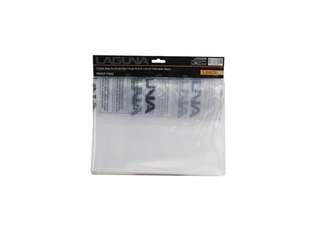

C|FLUX & P|FLUX FILTER BAGS, 5 PACK

• 22 gal. 5/PACK

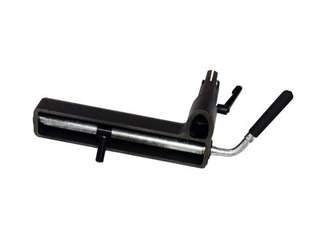

REVO 18|36 & 24|36: 12" FULL TOOL REST ASSEMBLY

• Complete Banjo fits Revo 18|36 Hardware included.
• Tool-Rest sold separately.

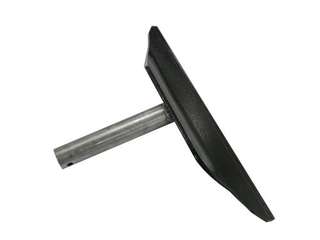

REVO 12|16: 8" TOOL REST

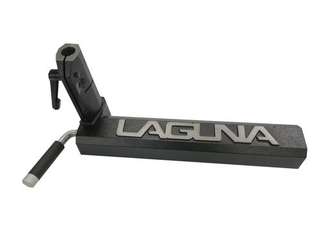

REVO 12|16: BANJO

• Complete Banjo fits Revo 12|16 Hardware included.
• Tool-Rest sold separately.

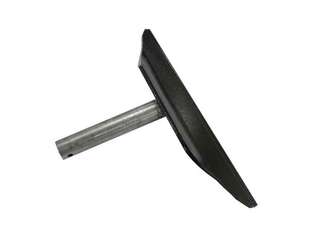

REVO 18|36 & 24|36: 12" TOOL REST

REVO 24|36: BANJO

• Complete Banjo fits Revo 24|36 Hardware included.
• Tool-Rest sold separately

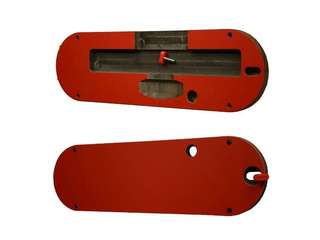

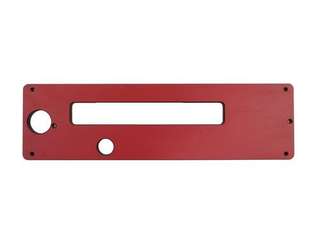

DADO THROAT PLATE FOR FUSION 2013-2018 TABLESAWS

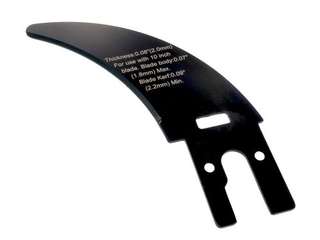

THIN KERF RIVING KNIFE

• The Fusion Table saws can now accept thin kerf blades with the use of the thin Kerf Riving Knife.
• The riving knife is always used in absence of the blade guard.
• Only the thin kerf riving knife can be used with thin kerf saw blades.
• Body Thickness: 2.00mm.
• Minimum Blade Kerf Thickness: 2.2mm

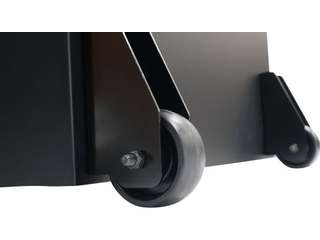

F1 WHEEL SYSTEM

• Easy Install mobility kit for Fusion F1 Tablesaw

F1 STANDARD THROATPLATE

• Fusion F1 Standard Throat Plate.

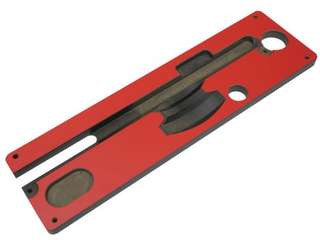

F1, F2 & F3 DADO INSERT

• Designed for use with F2 & F3 Tablesaws.
• Square profile.

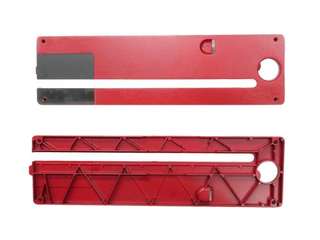

F1, F2 & F3 FUSION ZERO CLEARANCE THROATPLATE

• Fits new models
• Rounded Profile

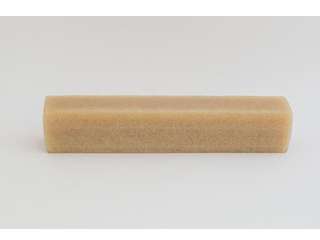

ABRASIVE CLEANING STICK

• Use our abrasive cleaning stick to clean up your sandpaper and get it back in shape for more work.

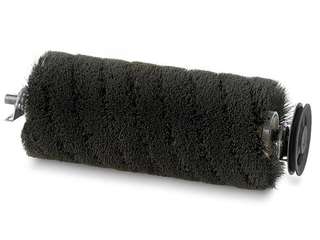

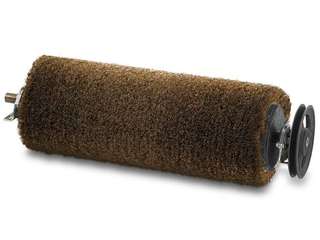

13” WIRE BRUSH HEAD

13” MEDIUM NYLON BRUSH HEAD

13” Heavy Nylon Brush Head

13” LIGHT NYLON BRUSH HEAD

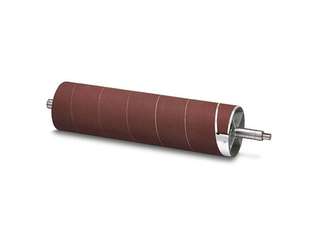

13" SANDING DRUM
