Laguna Woodworking Tools

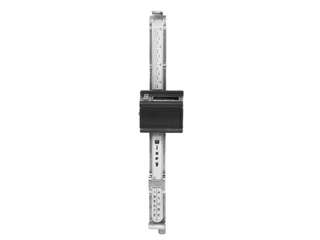

DIGITAL DEPTH GAUGE

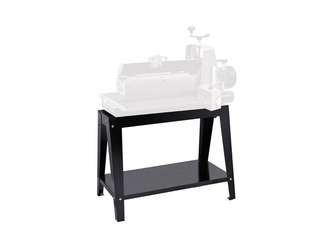

OPEN STAND 19-38

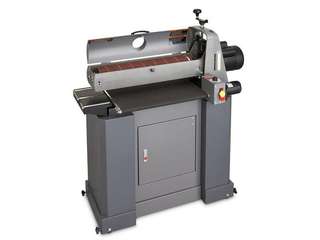

25-50 DRUM SANDER CLOSED STAND BUILT-IN CASTERS

• The SuperMax 25-50 Drum Sander is the largest open-ended drum sander on the market.
• Sand 25″ in a single pass, and up to 50” in a double pass.
• Expand the scope of projects you’re able to complete while increasing the speed and consistency in which you’re able to do them!
• The 25-50 Drum Sander is the newest member of the SuperMax Tools drum sander family which was designed with new features to improve productivity. Patented Quick Adjustment Lever: reduces set-up time.
• Turbo Vented dust port: increases airflow to your dust collector by 15%.
• The rear placement of the Gear Motor: improve conveyor belt tracking. These new features complement the same great features SuperMax Tools have provided for years.
• Patented Fast Lever: allows quick adjustments for wide and narrow stock
• INTELLISAND Technology: prevents gouging, damaging, or burning material.

Features:

• Simple alignment feature Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy.
• Indexed alignment setting has an indexed alignment setting for narrow and wide stock.
• When sanding stock wider than 25”, the index lever will properly adjust the conveyor for flawless wide sanding.
• Easy height adjustments A thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding.
• No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments.
• Drum will never go “out of alignment” The drum carriage is bolted to the base, preventing any movement or alignment issues.
• INTELLISAND™ Technology: Automatically adjusts conveyor speed based on load. Prevents gouging, damaging, or burning stoc.
• Provides consistent finish even with varying grain pattern and density. Greatly increases abrasive planing and dimensioning speed.
• Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander.
• Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner.
• Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap.
• Easiest access to the abrasive fastening system of any drum sander!
• Extra-wide space to access fasteners to eliminate the need for special tools. The self-cooling drum prevents overheating and extends abrasive life. Tension rollers are adjustable in height and hold down pressure, eliminating snipe.
• Excellent dust extraction as dust cover is formed to shape of the drum. Metal, not plastic, is formed to maximize airflow and dust extraction.
• Heavy-duty cast iron construction for strength, rigidity, and reduced vibration.
• Mobile Base allows for stand and machine to be to move easily.
• Optional Accessory Available: DRO (digital read out): maintain material thicknesses to increase accuracy and quality.

Sanding Capacity:

• Maximum Width (in): 50 (two passes)
• Minimum Length (in): 2-1/4
• Maximum Thickness (in): 4
• Minimum Thickness (in): 1/32
• Dimensions (in): 27D x 46W x 53H (on stand).
• Drum: 5 x 25 extruded aluminum.
• Drum Speed: 1740 RPM.
• Dust Hood: 1- 4″ vacuum port, min. 600 CFM recommended.
• Conveyor Motor: 43 in.-lb. torque, direct drive D.C. motor, ranged variable 0-10 FPM.
• Drive Motor (TEFC): 1-3/4 HP
• Power Requirements 110 V 20 amp.
• Shipping Weight (lbs): 369 (3 boxes incl. stand)

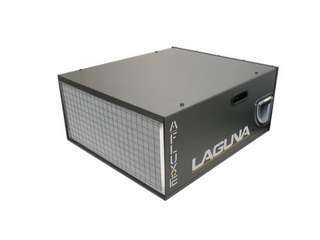

AIR FILTRATION SYSTEM

• The Air Filtration System is designed to recycle all of the air in a 20’x20’x8′ space up to 22 times per hour at its highest speed.
• It includes one (1) outer washable electrostatic filter with an inner filter that captures all particles larger than 1 micron ensuring clean air output. The unit is equipped with a 1/5 HP, 60 Hz service with the option of 540, 730 or 1200 CFM.
• Exceptional Features Include: Indicator monitors and alerts when the filter is dirty ensuring optimal air cleaner performance.
• 1 outer washable electrostatic filter.
• 3 Speed Operation (540, 730, 1200 CFM).
• Recycles all of the air in a 20’x20’x8′ space up to 22 times/hour at the highest speed setting.
• Remote Control offers convenience for on/off, speed adjustment, and timer programming when the unit is mounted on the ceiling or in hard-to-reach areas.
• Timer settings from 1/2 hour to 4 hours allow user to set the unit with confidence that, while they are away, the unit will clean the air in the shop and then turn itself off.
• he inner filter captures all particles larger than 1 micron ensuring clean air output.
• Includes a 1/5 HP, 60 Hz, 120 V, 1 Phase motor, 4 eye bolts and flange nuts for ceiling suspension, 4 rubber feet, 6-foot cord, 1 inner filter and remote (requires 2 AAA batteries, included). CSA Listed.

Specs:

• Motor: 1/5 HP, 120 V, 1 Phase, 60 Hz.
• Max CFM 540, 730, 1200 CFM.
• Filter Cycle: 20’x20’x8′ room – 10, 14, 22 times/hour.
• Outer Filter:
• 5 micron washable electrostatic filter – Size: 12x24x1.
• Inner Filter: 1 micron.
• Timer Settings: 1/2 hour to 4 hours.
• Motor Amp 4.9.
• Length 28 inches
• Width 24 inches.
• Height 12 inches.
• Weight (net) 60lbs.
• Weight (shipping) 73lbs.
• Warranty 2 years.
• Decibels (high speed) 59.6 dB.
• Decibels (medium speed) 56.1 dB.
• Decibels (low speed) 55.6 dB.

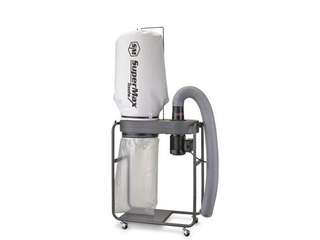

1 HP DUST COLLECTOR 1-MICRON

• The 1HP Dust Collector is designed to eliminate clean up after using your wood sanding machine.
• It has a TEFC induction motor for long-lasting, smooth performance along with a reversible motor assembly to complement the machine you are working with.
• The unit includes a 1HP, 8 amp, 3400 RPM service for up to 680 CFM. Our 1-micron bag can collect up to 99% of particles as small as 5 microns and 90% of particles as small as 1 micron in size. In other words, you’ll have a clean shop.

Exceptional Features Include:

• 1 HP TEFC induction motor for long-lasting, smooth performance. Reversible motor mounting capability to better direct airflow (suction up/down).
• Finned aluminum motor housing keeps the motor running cool during long periods of use.
• The curved 10.5” steel impeller produces maximum air velocity for efficient dust collection.
• Sturdy steel base with four easy-gliding wheels for moving from machine to machine or for storing out of the way.
• Maximum 680 CFM. 1 micron top and plastic bottom collection bags provide large dust collection capability.
• The 1HP Dust Collector is designed to eliminate clean up after using your wood sanding machine. It has a TEFC induction motor for long-lasting, smooth performance along with a reversible motor assembly to complement the machine you are working with.
• The unit includes a 1HP, 8 amp, 3400 RPM service for up to 680 CFM.
• Our 1-micron bag can collect up to 99% of particles as small as 5 microns and 90% of particles as small as 1 micron in size. In other words, you’ll have a clean shop.

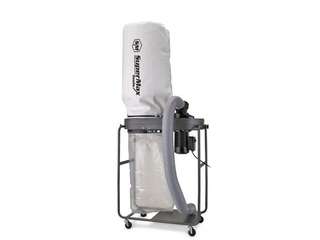

1-1/2 HP DUST COLLECTOR 1-MICRON

• The 1-1/2 HP Dust Collector is designed to eliminate clean up after using your wood sanding machine.
• It has a TEFC induction motor for long-lasting, smooth performance along with a reversible motor assembly to complement the machine you are working with.
• The unit includes a 1-1/2 HP, 15 amp, 3400 RPM service for up to 1200 CFM.
• SuperMax Tools Dust Collector vs. Other Brands Our 1-micron bag can collect up to 99% of particles as small as 5 microns and 90% of particles as small as 1 micron in size. In other words, you’ll have a clean shop.

Exceptional Features Include:

• 1-1/2 HP TEFC induction motor for long-lasting, smooth performance. Reversible motor mounting capability to better direct airflow (suction up/down).
• Finned aluminum motor housing keeps the motor running cool during long periods of use.
• The curved 11.5” steel impeller produces maximum air velocity for efficient dust collection.
• Sturdy steel base with four easy-gliding wheels for moving from machine to machine or for storing out of the way.
• Maximum 1200 CFM. 1 micron top and plastic bottom collection bags provide large dust collection capability.
• Air Flow: 1200CFM.
• Static Pressure: 9″ of water.
• Number of Air Inlets: 1 at 5″ / 2 at 4″.
• Bag Diameter (In.): 16″.
• Top Filter Bag Length: 1 Micron Cloth – 46″
• Bottom Collection Bag Length: Plastic (3 included) – 46″.
• Space Occupied: 35x19x83.
• Packing Size: 35x20x18.
• Gross/Net Weight: 99/93lbs.
• Impeller: 11.5″ Steel.
• 2-Hose Connection Diameter (In.): 4″.
• Motor Power (HP): 1-1/2 TEFC 3400 RPM.
• Motor Phase (PH): 1.
• Motor Voltage (V): 115/230.
• Prewired Voltage (V): 115. Motor Amps: 15/7.5.
• CSA Approved: YES.
• Warranty: 2 Years.
• Decibels Output. 78 dB

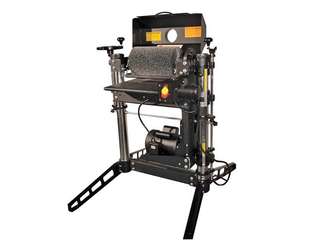

13″ COMBO BRUSH/DRUM SANDER, 110V (INCLUDES 1 BRUSH)

• The 13″ Combination Brush/Drum is the answer to your production bottleneck.
• Developed with mouldings in mind, this versatile sander can tackle every step in your finishing process, from sanding raw wood to sanding in between coats of stain or primer.
• This model features a 1-3/4 HP motor, and can handle stock up to 4″ thick, or as thin as 1/32″.
• It can also be equipped with an optional sanding drum for surface sanding.

13″ COMBINATION BRUSH/DRUM SANDER FEATURES:

• Infinitely variable brush speed and conveyor feed rate.
• Optional Drum for surface sanding.
• Quickly change brush heads or abrasive loadings.
• Fully adjustable tension rollers prevent stock slippage.
• Reinforced steel conveyor bed with a poly conveyor belt.
• Precision height adjustment.
• Bristle Contact Gauge included

Sanding Capacity:

• Maximum Width (in): 13
• Minimum Length (in): 9
• Maximum Thickness (in): 4, varies with drum/brush style
• Minimum Thickness (in): 1/32*
• Dimensions (in): 35L x 42W x 44H Drum (in): 5 x 13 extruded aluminum.
• Brush (in): 6-8 typical diameter.
• Speed: ranged variable RPM, 400-1200
• Dust Hood: 1- 4″ port, hinged at back, 600 CFM min. recommended
• Conveyor Motor: 43 in.-lb. torque, ranged variable, 0-10 FPM
• Drive Motor (TEFC): 1-3/4 HP
• Power Requirements: 110 Volt, 20 amp service
• Shipping Weight (lbs): 300 (approx., varies based on how equipped)

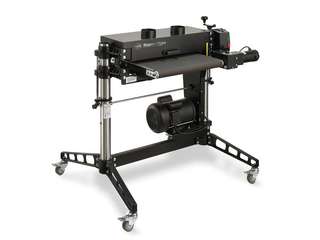

25X2 DOUBLE DRUM SANDER, 220V- 1PH

• Sand two grits in a single pass with a 25×2 Double Drum Sander.
• Featuring INTELLISAND Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding.
• The 25×2 Double Drum Sander features INTELLISAND Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock.
• The machine comes standard on an open-column base and features a 5 HP motor.

Features:

• INTELLISAND Technology: Automatically adjusts conveyor speed based on load. Prevents gouging, damaging, or burning stock. Provides consistent finish even with varying grain pattern and density. Greatly increases abrasive planing and dimensioning speed.
• Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander.
• Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner.
• Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap.
• Easiest access to abrasive fastening system of any drum sander!
• Machine design includes additional space around abrasive, eliminating the need for special tools.
• The self-cooling drum prevents overheating and extends abrasive life.
• Drum ball bearing is sealed and permanently lubricated.
• Cast stand, zinc-plated steel bed, centerless ground column tubes.

Sanding Capacity:

• Maximum Width (in): 25, 37, 50.
• Minimum Length (in): 3-1/2.
• Maximum Thickness (in): 25″ model: 6 37″ & 50″ models: 12.
• Minimum Thickness (in): 1/32.
• Dimensions HxWxD (in): 25″ model: 43 x 46 x 31 37″ model: 43 x 58 x 31 50″ model: 50 x 71 x 31
• Drum (in): (extruded aluminum) 25″ model: 5 x 25 37″ model: 5 x 37 50″ model: 5 x 50
• Drum speed: 1740 RPM
• Dust Hood: (Steel hood, hinged at back 25” model: one (2) 4” vacuum port, min. 1000 CFM recommended 37″ & 50″ models: (3) – 4″ vacuum ports, min. 1800 CFM recommended.
• Ball bearings (1”): 4, sealed and permanently lubricated.
• Conveyor Motor: 25″ & 37″ models: 100 in. -lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM. 50″ model: 220 in.-lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM.
• Drive Motor (TEFC): 25″ & 37″ models: 5 HP. 50″ model: 7-1/2 H.
• Power Requirements: 208-230V, 60HZ; 1 Ph, 30 amp service; 3 Ph 20 amp service.
• Shipping Weight (lbs): 25″ model: 475 37″ model: 525 50″ model: 820

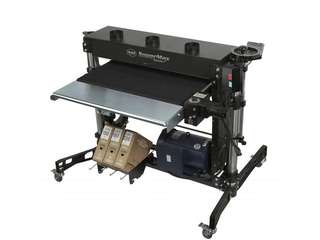

37X2 DOUBLE DRUM SANDER WITH CASTERS, 220V – 1PH

• Double Drum Sander, 220V, 5HP, 1PH - (includes casters).
• Sand two grits in a single pass with a 37×2 Double Drum Sander.
• Featuring INTELLISAND Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding.
• The 37×2 Double Drum Sander features INTELLISAND Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock.
• The machine comes standard on an open-column base and features a 5 HP motor with Single Phase power.

Features:

• INTELLISAND Technology: Automatically adjusts conveyor speed based on load. Prevents gouging, damaging, or burning stock. Provides consistent finish even with varying grain pattern and density. Greatly increases abrasive planing and dimensioning speed.
• Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander.
• Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner.
• Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap.
• Easiest access to the abrasive fastening system of any drum sander!
• Machine design includes additional space around abrasive, eliminating the need for special tools.
• The self-cooling drum prevents overheating and extends abrasive life.

Sanding Capacity:

• Maximum Width (in): 25, 37, 50.
• Minimum Length (in): 3-1/2.
• Maximum Thickness (in): 25″ model: 6 37″ & 50″ models: 12
• Minimum Thickness (in): 1/32.
• Dimensions HxWxD (in): 25″ model: 43 x 46 x 31. 37″ model: 43 x 58 x 31. 50″ model: 50 x 71 x 31
• Drum (in): (extruded aluminum) 25″ model: 5 x 25. 37″ model: 5 x 37. 50″ model: 5 x 50.
• Drum speed: 1740 RPM.
• Dust Hood: (Steel hood, hinged at back. 25” model: one (2) 4” vacuum port, min. 1000 CFM recommended. 37″ & 50″ models: (3) – 4″ vacuum ports, min. 1800 CFM recommended.
• Ball bearings (1”): 4, sealed and permanently lubricated.
• Conveyor Motor: 25″ & 37″ models: 100 in. -lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM. 50″ model: 220 in.-lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM Drive Motor (TEFC): 25″ & 37″ models: 5 HP. 50″ model: 7-1/2 H.
• Power Requirements: 208-230V, 60HZ; 1 Ph, 30 amp service; 3 Ph 20 amp service
• Shipping Weight (lbs): 25″ model: 475. 37″ model: 525. 50″ model: 820

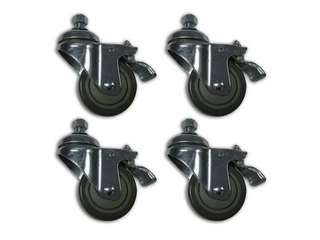

CASTERS SET OF 4 USE WITH OPEN STAND

• Sanding Drum accessory for the 19-38" Combo Drum/Brush Sander from SuperMax Tools.

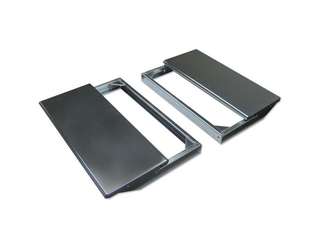

FOLDING INFEED/OUTFEED TABLES 25x2

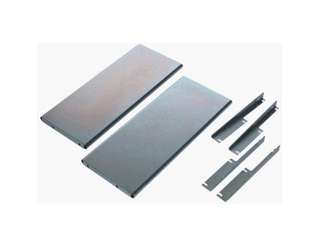

IN/OUTFEED TABLES

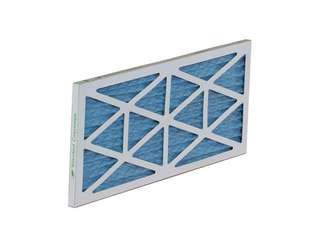

DISPOSABLE OUTER FILTER (5-MICRON)

• Fits Supermax Air Filtration Unit

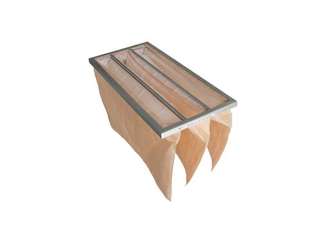

“3 Bag” Filter for Supermax Air Filtration Unit

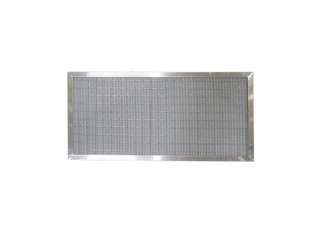

ELECTROSTATIC FILTER 5 MICRON

• “Electrostatic” Filter for Supermax Air Filtration Unit

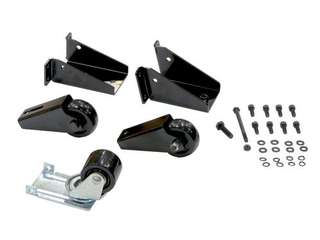

Wheel system fits JX 12" & 16" Jointers
