Rikon Power Tools

10" Contractors Saw

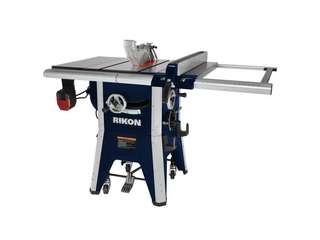

10” Left Tilt Contractor Table Saw 10-205 is a no-nonsense machine whose simplicity is the strength behind its popularity with home craftspeople and professional workshops. Operating this table saw is straight forward – blade controls are large and easy to access, box-type rip fence sets accurately, dual table ‘T’ slots give great options for use of miter gauges and other jigs, blade changes are easy, blade guards and control switch with large ‘off’ paddle add excellent safety measures to the user, and the built-in mobile base allows moving the saw around the shop easy. Wired for use with 3-wire 120V receptacles.

Features:

• Powerful 1-3/4 HP, 1Ph, 120/240V, 3450 RPM motor
•  Industrial quality, multi-ribbed flat J-belt for smooth power transfer
•  Precision machined cast iron table top and wings
•  Dual table ‘T’ slots for use with miter gauges and jigs
•  Magnetic table insert removes without tools
•  Clear blade guard with riving knife/splitter for extra user safety

Specifications:

• Horsepower 1-3/4 HP
• Amps 15/7.5
• Volts 120/240V, 60 Hz
• RPM 3,450

• Diameter 10”
• Teeth 40 ATB, Carbide
• Arbor 5/8”
• Speed 3,450
• Tilt Left

• Maximum Depth of Cut at 90° 3-1/8”
• Maximum Depth of Cut at 45° 2-3/16”
• Maximum Width of Dado 3/4”
• Maximum Rip to the Right of Blade 29-1/2”
• Maximum Rip to the Left of Blade 14-1/2”
• Table in Front of Blade 11-3/8”

• Size 27” x 40”
• Miter Gauge “T” Slot (2) 3/4” x 3/8”
• Height from Floor 31-3/8”
• Table Size without Wings 20-1/8” x 27”
• Left Wing Dimension 9-7/8” x 27”
• Right Wing Dimension 9-7/8” x 27”

• Height 45.5”
• Width 52”
• Depth 39”
• Dust Port 1@4”
• Net Weight 260 lbs.
• Shipping Weight 273 lbs.
• Shipping Carton 45-1/2” x 30-3/4” x 23”
• Warranty 5 Years

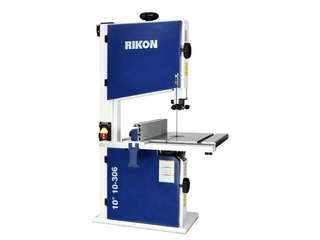

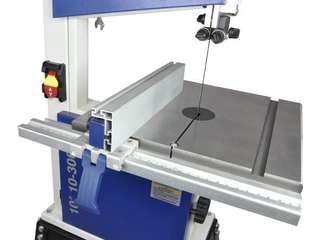

New Improved 10" Deluxe Bandsaw 1/2 HP, 2 speed, tool-less guides

• Patent Pending – Spring Loaded Tool-less Guide System
• Quick-Release Blade Tension Lever
• 2 Blade Speeds 1,515 or 3,250 ft. / min
• Improved Rip Fence System
• More Powerful 1/2 HP Motor
• Convenient 45° Table Tilting Stop
• Increased Cutting Height of 5” with 9-5/8” Width

10” Deluxe Bandsaw #10-306 includes numerous new features that make this bandsaw extremely easy to operate and make adjustments to the blade, guides and fence. The increased cutting capacity, 2 blade speeds, and increased 1/2HP motor are quite ample enough for most small projects, and will be appreciated with woodworkers having limited shop space for a larger size bandsaw. Improved features for easy operation – 2 blade speeds, tool-less blade guides, quick-release blade tension lever, tilting 0-45° cast iron table, adjustable rip fence, larger blade tension knob, dust port for shop vacuum hookup, side windows for viewing blade tracking settings, storage hanger for the fence and tools, and safety paddle on/off switch. Reduced size is ideal for transporting, or storing, when not in use. Includes rip fence. Steel stand is available separately.

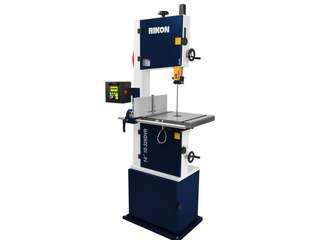

14" Deluxe Bandsaw with DVR Smart Motor

• Blade Speed – Variable from 100 RPM (45 SFPM) to 2,375 RPM (4400 SFPM)
• Continuous Torque – 1.75 HP will never slow down producing a beautiful/smooth cut
• Safer Operation – Fast electronic braking and load spike detection
• Patented – Spring Loaded Tool-less Guide System
• Effortless Cutting – Fifteen suggested speed settings for wood/metal/plastic plus one custom range

14″ Deluxe Bandsaw #10-326DVR has all of the 10-326 features with an added benefit! By adding Striatech’s smart switched reluctance motor, RIKON’s 14” bandsaw #10-326 is better than ever before.

Unlike conventional bandsaw motors, the Striatech motor is infinitely variable, and offers continuous torque. This means you get a consistent and beautiful finish cut on your workpiece, and a much easier user experience. Improved energy efficiency and quiet, vibration-free operation are added bonuses when upgrading your bandsaw with this new high-tech and innovative motor control system. With an easy-to-read screen and DVR controller, this technology adds much-needed features to the bandsaw.

• DVR Motor
• Horsepower 1.75HP Single Phase
• Amps 15 Amps
• Volts 115v
• Blade Speed (Variable) 100 RPM (45 SFPM) to 2,375 RPM (4400 SFPM)

4-Wood Preset Functions
1. Resaw preset speed 4,000 SFPM (2,160 RPM) / Variable from 2,000 SFPM to 4,400 SFPM (1080 to 2,375 RPM)
2. Bowl Blank preset speed 3,000 SFPM (1,620 RPM) / Variable from 1,500 SFPM to 3,600 SFPM (810 to 1,945 RPM)
3. Rip/ Cross Cut preset speed 2,500 SFPM (1,350 RPM) / Variable from 1,250 SFPM to 3,600 SFPM (675 to 1,620 RPM)
4. Scroll/ Pattern speed 2,000 SFPM (1,080 RPM) / Variable from 1,000 SFPM to 2,400 SFPM (540 to 1,295 RPM)

4-Metal Preset Functions
1. Carbon Steel preset speed 250 SFPM (135 RPM) / Variable from 175 SFPM to 350 SFPM (195 to 395 RPM)
2. Stainless Steel preset speed 100 SFPM (110 RPM) / Variable from 70 SFPM to 150 SFPM (100* to 170 RPM)
3. Titanium preset speed 75 SFPM (100* RPM) / Variable from 65 SFPM to 85 SFPM (100* to 100* RPM)
4. Cast Iron preset speed 160 SFPM (180 RPM) / Variable from 95 SFPM to 225 SFPM (105 to 255 RPM)
*Must change belt to slow pulley range

4-Non-Ferrous Metal Preset Functions
1. Aluminum preset speed 400 SFPM (445 RPM) / Variable from 300 SFPM to 440 SFPM (340 to 500 RPM)
2. Brass preset speed 250 SFPM (280 RPM) / Variable from 150 SFPM to 315 SFPM (170 to 355 RPM)
3. Bronze preset speed 220 SFPM (250 RPM) / Variable from 80 SFPM to 260 SFPM (100 to 295 RPM)
4. Copper preset speed 200 SFPM (225 RPM) / Variable from 160 SFPM to 220 SFPM (180 to 250 RPM)

3-Plastic Preset Functions
1. Acrylic speed 2500 SFPM (2,845 RPM) / Variable from 1,500 SFPM to 4,000 SFPM (1,705 to 3,500 RPM)
2. Nylon speed 1500 SFPM (1,705 RPM) / Variable from 900 SFPM to 2,100 SFPM (1,025 to 2,390 RPM)
3. HDPE speed 2000 SFPM (2,275 RPM) / Variable from 1,800 SFPM to 3,000 SFPM (2,050 to 3,415 RPM)

1-Custom Preset Function
1. Custom Preset Speed 2,000 SFPM (2,275 RPM) / Variable from 45 SFPM allowed up to 4000 SFPM (100 to 3,500 RPM)

• Height 13”
• Width 13-5/8”

• Width 3/16” – 3/4”
• Length 111”

• Size 21-1/2” x 15-3/4”
• Left Tilt -7°
• Right Tilt 45°
• Miter Gauge “T” Slot (2) 3/4” x 3/8”
• Height to Floor 40-1/2”
• Height to Base 20-7/8”
• Fence Size 18-3/4” x 1-3/4” x 6”

• Height 74-1/2”
• Width 33-3/4”
• Depth 25”
• Base Size 24” x 17-5/8”
• Dust Port 1@4”
• Net Weight 285 lbs.
• Shipping Weight 293 lbs.
• Shipping Carton 54-1/2”x17-7/8”x23-7/8”
• Bandsaw Warranty 5 Years
• Smart DVR Motor Warranty 2 Years

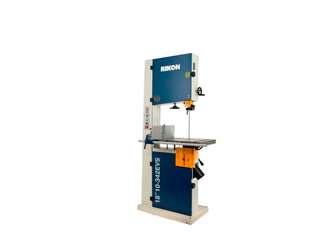

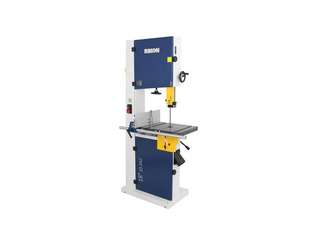

18" Bandsaw 2.0 HP Motor

Features:

• 13″ Cutting Capacity
• Spring Loaded Tool-Less Guide System
• Quick Adjust 6″ tall fence system
• Quick Adjust Trunnion System
• Quick Release Blade Tension
• Hinged Blade Guard with Sight Window

Specifications:

• Motor: 2 HP TEFC, 8.8 Amps, 220V, 60 Hz
• Blade size: 153″ (1/4″ to 1-3/8″ wide)
• Blade Speed: 3,280 FT/MIN
• Table size: 21-1/2″ x 15-3/4″
• Table tilt: 45° right, -10° left
• Miter Gauge “T” slot: (2) 3/8″ x 3/4″
• Height to floor: 35-1/2″
• Cutting capacity: 13″ H, 17-1/2″ W

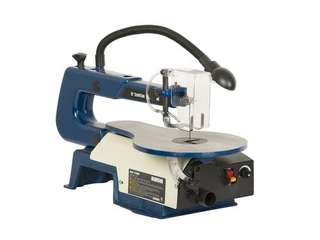

16" Scroll Saw w/ Lamp

• Amps 1.2
• Volts 120V, 60 Hz
• Table
• Size 10-1/16” x 16-5/16”
• Left Tilt 0° – 45°
• Cutting Capacity
• Blade Length 5”
• Height 2”
• Stroke 3/4”
• Electronic Variable Speeds (SPM) 550-1,650
• Throat Depth 15-3/4”
• Table in Front of Blade 12-1/2”

• Stroke Speed Per Minute 550 – 1,650
• Blade Supplied 18TPI, Reg., Pin-less
• Dust Port Diameter 1-3/8”
• LED Light 120V/10W
• Maximum Sound Level (Idle) <76dB

• Height 15”
• Width 12-9/16”
• Depth 24-7/8”
• Base Size 9” x 15-1/2”
• Net Weight 26 lbs.
• Shipping Weight 30 lbs.
• Shipping Carton 26” x 13” x 15-1/2”
• Warranty 5 Years

Retrofit Kit for RIKON 14" Bandsaw Models 10-324, 10-325

These Innovative, Patented Guides make the setting of their precision ball bearing guides a fast & easy process – no wrenches are needed! Setting the guides takes just seconds. With just a turn of the large knobs, the bearings are freed of their previous positions. Internal springs that push on the rear bearing mounting posts will automatically force the bearings safely away from the bandsaw blade.

• Patented Guides make the setting of their precision ball bearing guides a fast & easy process
• Internal springs that push on the rear bearing mounting posts will automatically force the bearings safely away from the bandsaw blade
• No wrenches are needed
• For use with 10-324, 10-325, 10-326

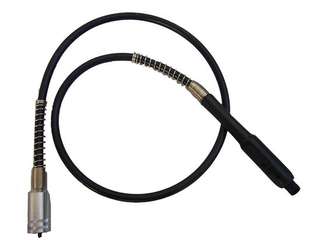

Flex Shaft Attachment for 10-600VS

• For use with 10-600VS
• Installs on side of RIKON scroll saw for rotary detail work
• Will hold 8th in diameter accessories
• For use with 10-9124 Accessory Kit

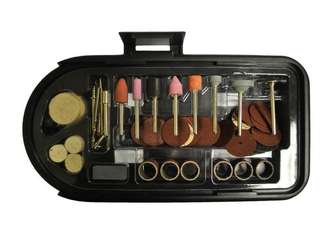

64 PC Accessory Kit for 10-600VS

• For use with 10-600VS
• Includes a variety of abrasive stones, wheels, diamond burrs, twist drills, sanding drums and polishing buffs
• Produce excellent results in all your detail work
• For use with 10-9123 Accessory Kit

10" Portable Table Saw w/Stand #11-600S

• A must have for homeowners, small shops, and contractors. This portable saw has a powerful 2HP, 15A, 110V variable speed motor that has the strength to tackle any project. Selecting the proper blade speed allows the user to dial in precision, and performance for each type of material to be cut.
• This technology retains torque throughout the cut which will prevent burning of material and premature dulling of blades.
• This portable saw has all the features of a large shop saw including a quick-release blade guard, riving knife for through cuts and the capability of cutting 13/16" dados.
• Rack and pinion gearing for rapid blade elevation and lowering. Includes portable, foldable stand for easy transport and storage.
• Wired for use with 3-wire 120V receptacles.
• Powerful 2 HP, 1Ph, 110V, variable speed motor.
• Blade speeds variable from 2,000 to 4,200 RPM
• 28" Maximum rip capacity to right of the blade
• Arbor lock for safe and rapid blade changes
• Adjustable rear work support and 2-1/2" Standard dust port
• Onboard fence,tool and accessory storage.

500 Lumens LED Gooseneck Work Light with Magnetic Base and Mag Clip

• Great for lighting up work areas on bandsaws, grinders, buffers, scroll saws and benchtop belt & disc sanders
• Worklight includes USB cable that attaches to standard phone chargers for use without batteries
• Magnetic base and side clip with magnet makes attaching the LED light easy on larger machinery or any steel surface
• 500 Lumens LED Light

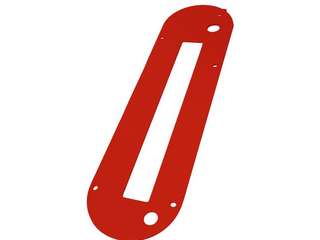

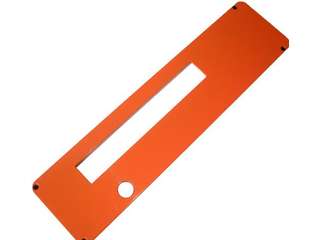

DADO Insert 10-201, 11-200, 11-300 Table Saw

• For use with 10-201
• Great for use with dado set
• Allows for minimum clearance from dado blade
• Cast Aluminum

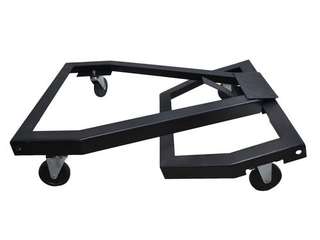

Mobility Kit for 10-321

• For use with 10-321
• It allows you to safely and easily move your equipment around your shop
• That type of mobility is essential for those of us who have a shop where space is limited
• This mobility kit includes tow bar, axle, wheels, and the necessary hardware needed to mount it to your bandsaw

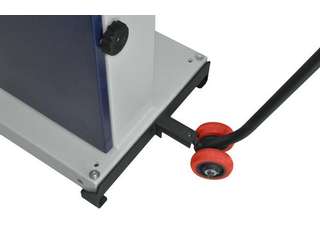

Mobility Kit for 10-341, 342, 345, 346, 347, 350, 351, 353, 370

• For use with 10-341, 10-342, 10-345, 10-346, 10-347, 10-350, 10-351, 10-353, 10-370
• It allows you to safely and easily move your equipment around your shop
• That type of mobility is essential for those of us who have a shop where space is limited
• This mobility kit includes tow bar, axle, wheels, and the necessary hardware needed to mount it to your bandsaw
